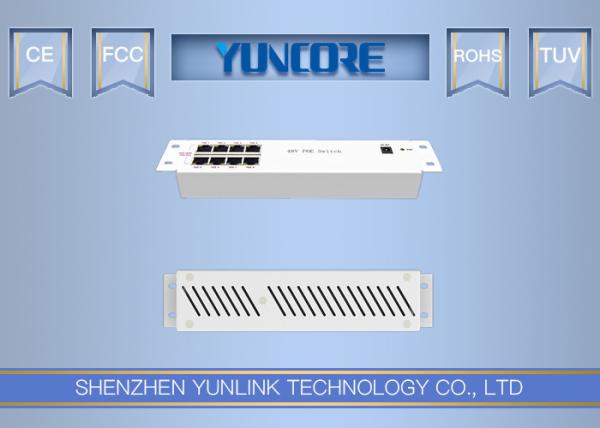

Network Distribution Box Compatible 8 Port 10 / 100M IEEE802.3 af PoE Switch

MR700 is a home use 48V PoE switch. It with 8 faster PoE ports, all ports support auto-negotiation, auto MDI/MDIX, comply with IEEE 802.3af active PoE standard, build in network/electronic distribution box to supply PoE Power and Data Rate for connected wireless AP, IP Camera, IP Phone...

Spec:

Model	MR700(72W)
Standard	IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX ANSI/IEEE 802.3 N Way IEEE802.3x IEEE802.3af
Ports	8*10M/100M RJ45 Ports, support 48V PoE, IEEE 802.3af 1*DC Injector: 48V/1.5A
Ports Features	10/100Mbps data rate Support auto Negotiation /auto MDI/MDIX RJ45 Ports IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Cable requirement	10/100BASE-TX: UTP 5 cable(≤100 meters)
LED Indicator	POE, LINK, POWER
Backplane Bandwidth	1.6 Gbps
Forwarding Capability	1.33Mbps
MAC Address Table	MAC Address Auto-Learning and Auto-Aging. MAC Address Table: 2K
POE Power	Total PoE Power: 72W, Overload Protection: 72W Max PoE Power of each port: 15W
Size	229mm * 49.5mm * 28.0mm
Input Power	DC 48V 1.5A
Working Temperature	-20℃~50℃

Working Diagram:
